On-Ground Hoarding
THS111500
Our On-ground Hoarding systems offer a great short-term solution for urban areas where excavation isn’t feasible, such as pavements or roads. It’s perfect for budget-conscious sites since there are no added expenses for excavation.
On-Ground Hoarding

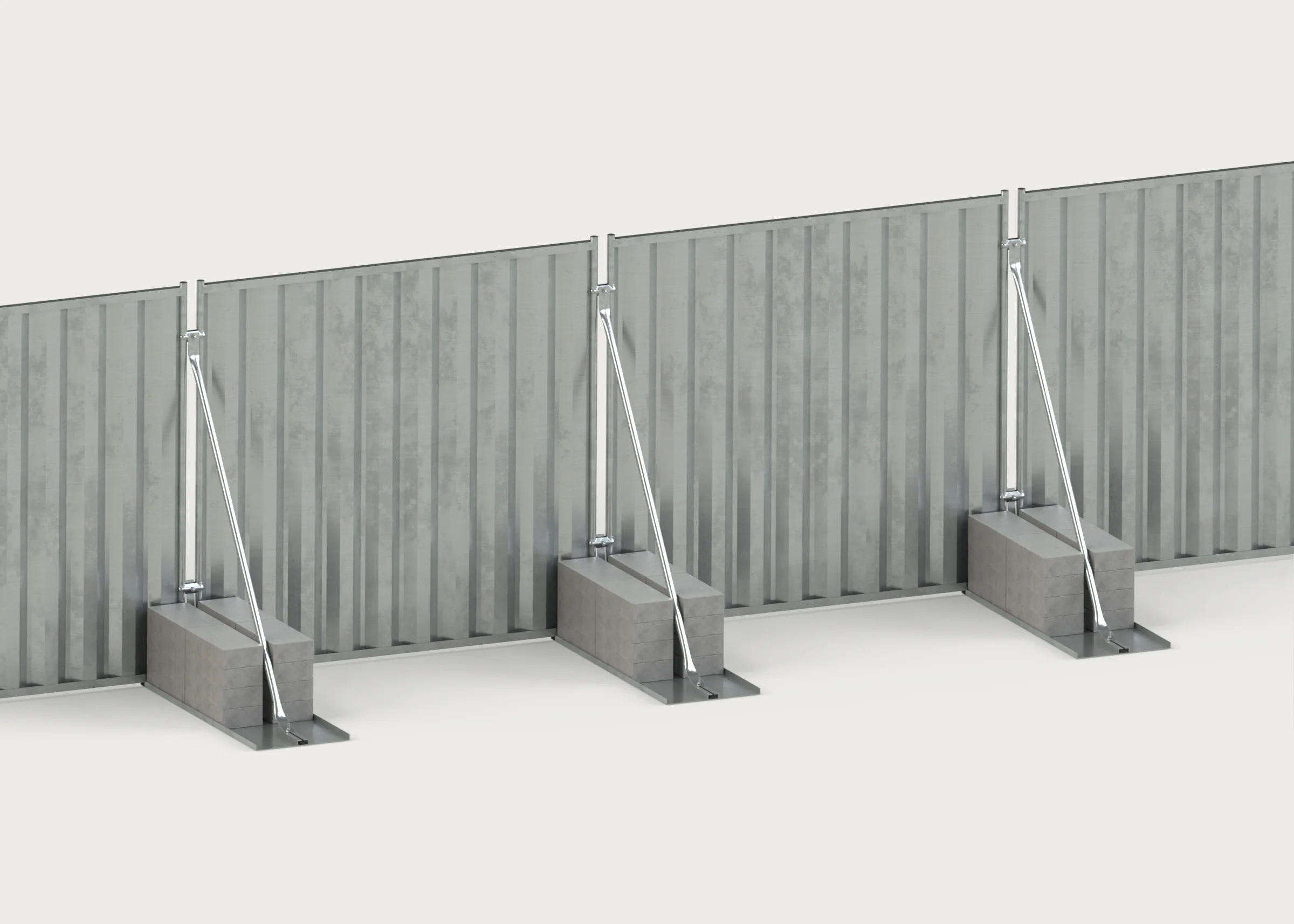

This perimeter hoarding system is straightforward, cost-effective, and sturdy, with a durable powder-coated finish. Rather than being inserted directly into the ground, the hoarding sits on the surface. Available in both 2m and 2.4m heights and is made from reusable and fully recyclable materials.
Key Features
Privacy Screen
Solid hoarding panels ensure visual privacy, dust control, and safer public separation zones.
Secure Access
Integrated pedestrian and vehicle gates provide controlled entry without compromising site security.
Quick Installation
No ground drilling required; rubber feet and coupler connections enable rapid setup and repositioning.
Galvanised Steel
Galvanised for corrosion resistance and long-term durability in all environments.
Heavy Duty
Engineered from reinforced steel for lasting performance under demanding site and highway conditions.
UK Manufactured
Proudly made in the UK for assured quality, reliability, and compliance with site safety standards.

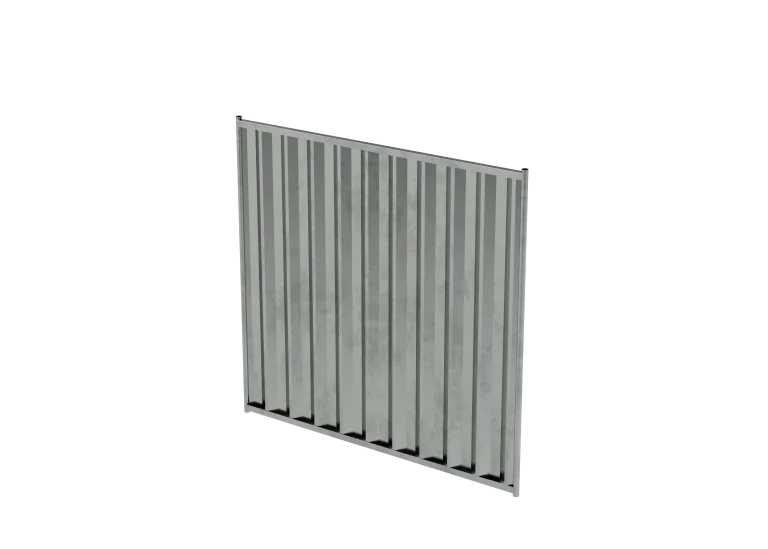

2m InOn Ground Steel Hoarding Panel
| Product ID | THS111050 |
|---|---|
| Height | 2000mm |
| Depth | 40mm |
| Width | 2133mm |
| Weight | 30kg |
| Colours | Unpainted |

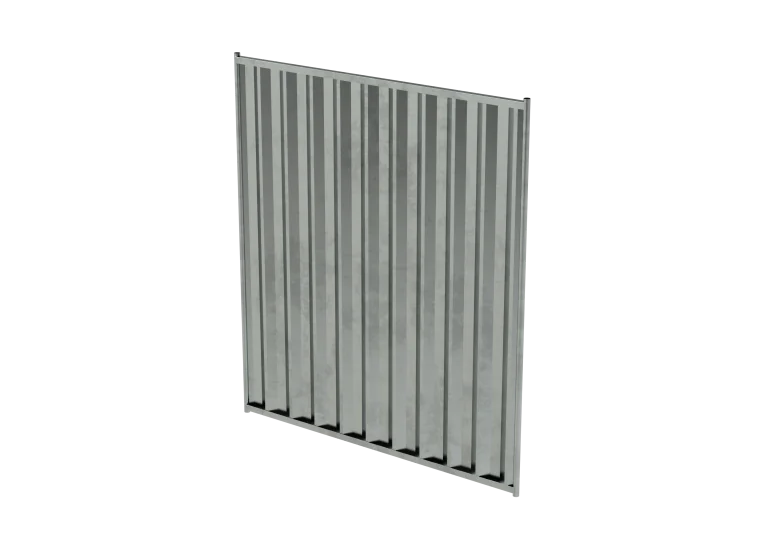

2.4m InOn Ground Steel Hoarding Panel
| Product ID | THS111100 |
|---|---|
| Height | 2400mm |
| Depth | 40mm |
| Width | 2133mm |
| Weight | 35kg |
| Colours | Unpainted |

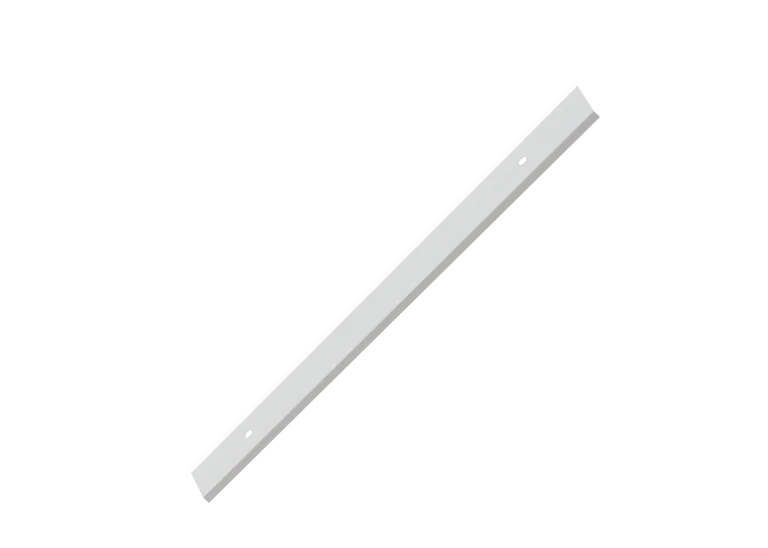

2m InOn Ground Vertical Infill
| Product ID | THS111350 |
|---|---|
| Height | 1910mm |
| Depth | 15mm |
| Width | 140mm |
| Weight | 2.4kg |
| Colours | Unpainted |

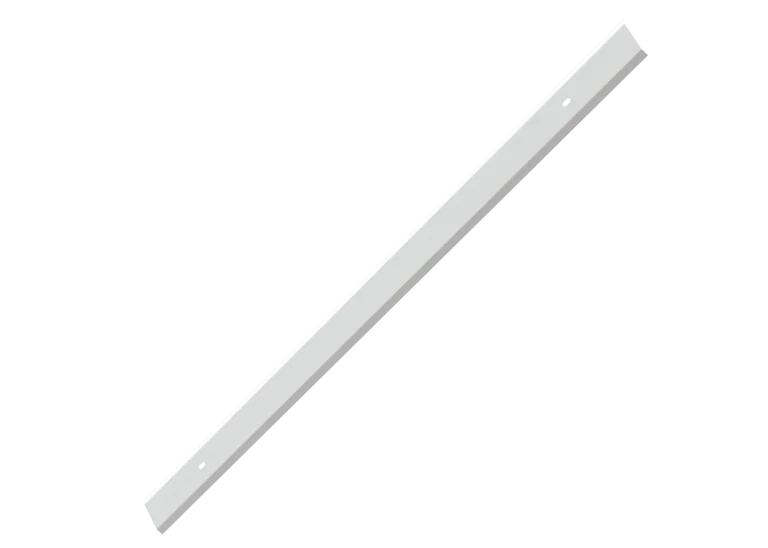

2.4m InOn Ground Vertical Infill
| Product ID | THS111400 |
|---|---|
| Height | 2310mm |
| Depth | 15mm |
| Width | 140mm |
| Weight | 3kg |
| Colours | Unpainted |
Standard Fencing Coupler
| Product ID | TFS100500 |
|---|---|
| Height | 26mm |
| Depth | 78mm |
| Width | 136mm |
| Weight | 0.21kg |
| Colours | Unpainted |

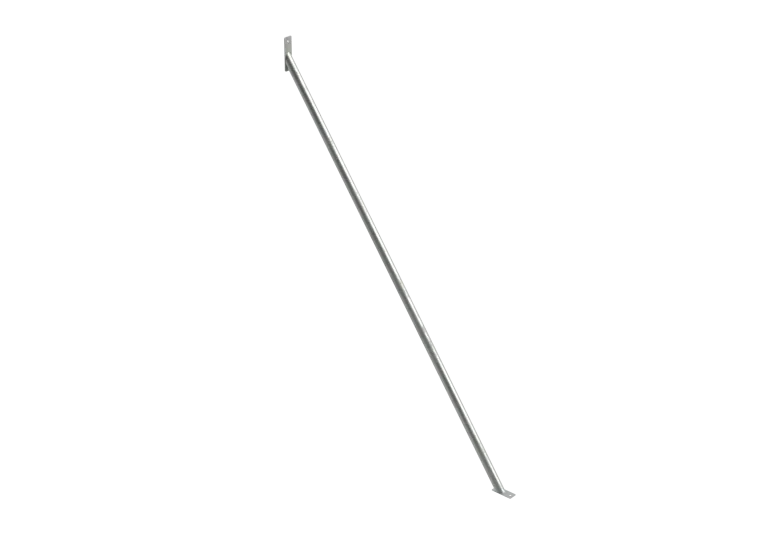

2m Stabiliser
| Product ID | TFS111700 |
|---|---|
| Height | 2150mm |
| Depth | — |
| Width | 40mm |
| Weight | 3.2kg |
| Colours | Unpainted |

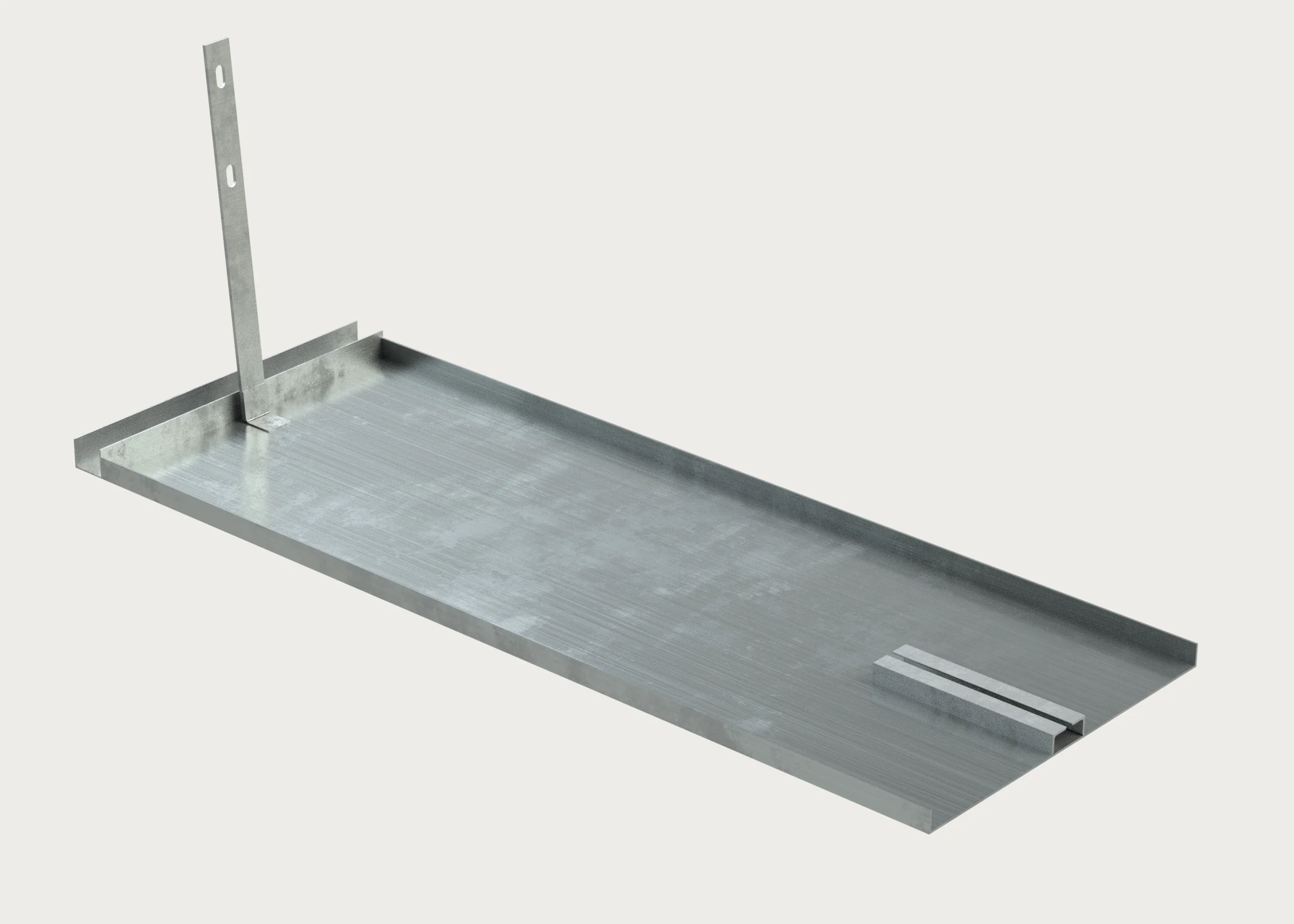

Heavy Duty Block Tray
| Product ID | TFS111720 |
|---|---|
| Height | 500mm |
| Depth | 500mm |
| Width | 1300mm |
| Weight | 13kg |
| Colours | Unpainted |
4x2m Hoarding Vehicle Gate
| Product ID | THS112400 |
|---|---|
| Height | 2000mm |
| Depth | 40mm |
| Width | 4000mm |
| Weight | 60kg |
| Colours | Unpainted |
4×2.4m Hoarding Vehicle Gate
| Product ID | THS112420 |
|---|---|
| Height | 2400mm |
| Depth | 40mm |
| Width | 4000mm |
| Weight | 71kg |
| Colours | Unpainted |
2m Hoarding Pedestrian Gate
| Product ID | THS112300 |
|---|---|
| Height | 2000mm |
| Depth | 40mm |
| Width | 1000mm |
| Weight | 17kg |
| Colours | Unpainted |

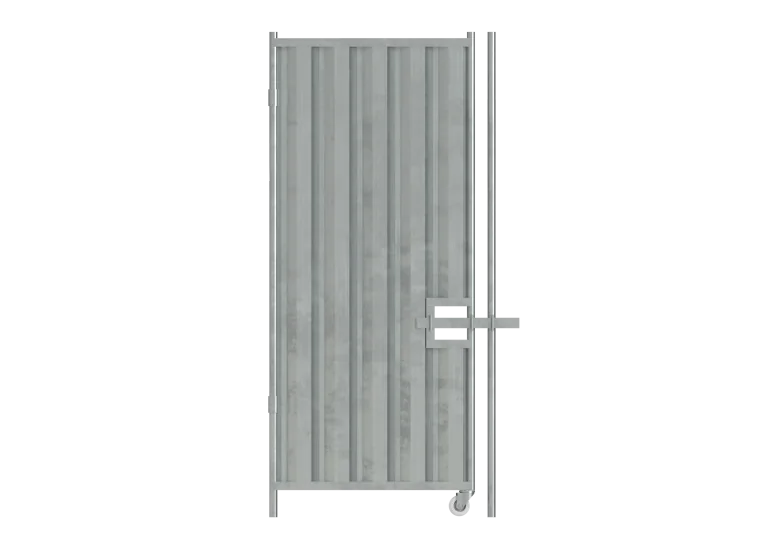

2.4m Hoarding Pedestrian Gate
| Product ID | THS112340 |
|---|---|
| Height | 2400mm |
| Depth | 40mm |
| Width | 1000mm |
| Weight | 20kg |
| Colours | Unpainted |
Download Spec Sheet
Simple & Quick install

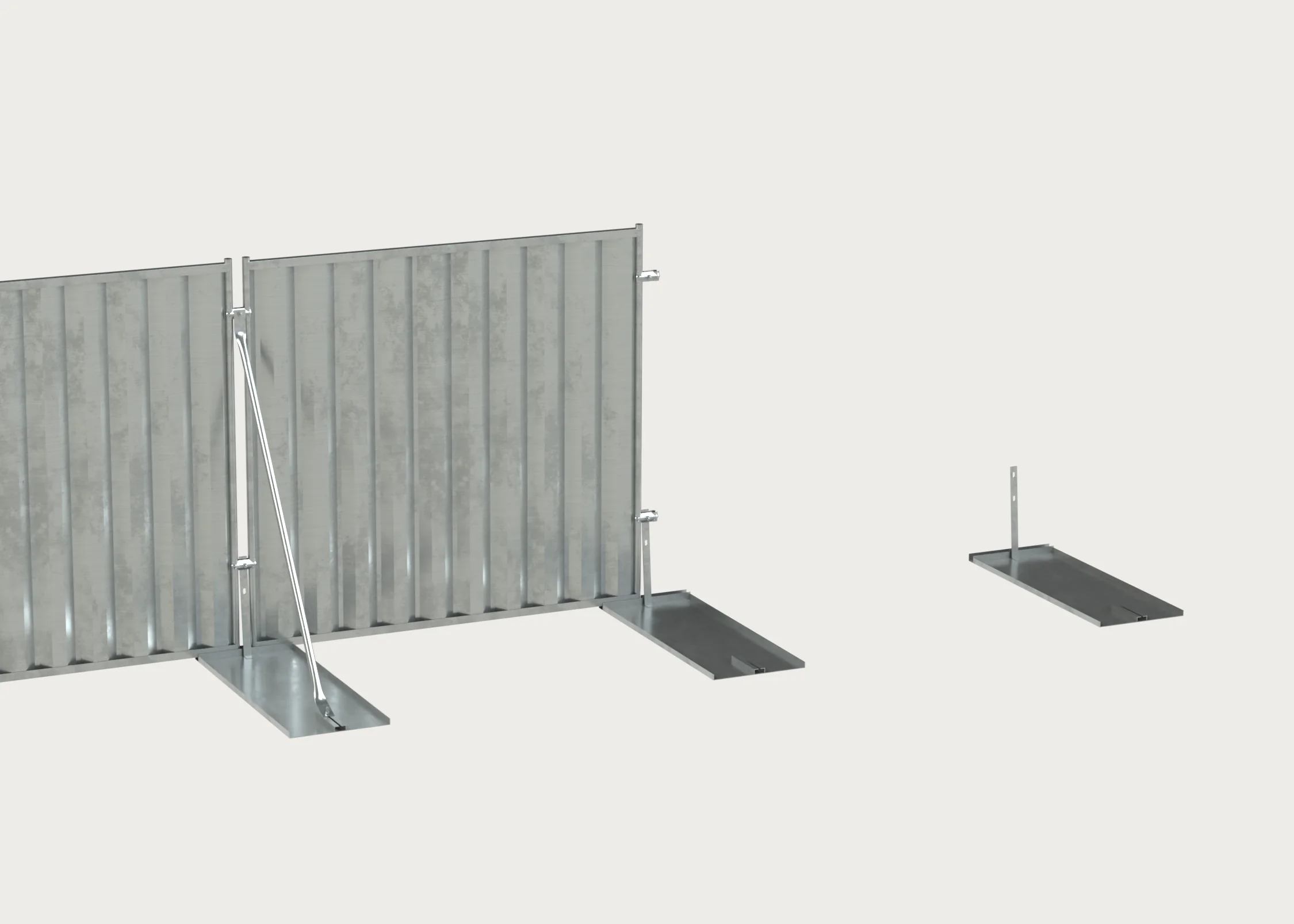

On-Ground Hoarding is installed directly on the ground as opposed to being placed into it, removing the need to dig post supports.

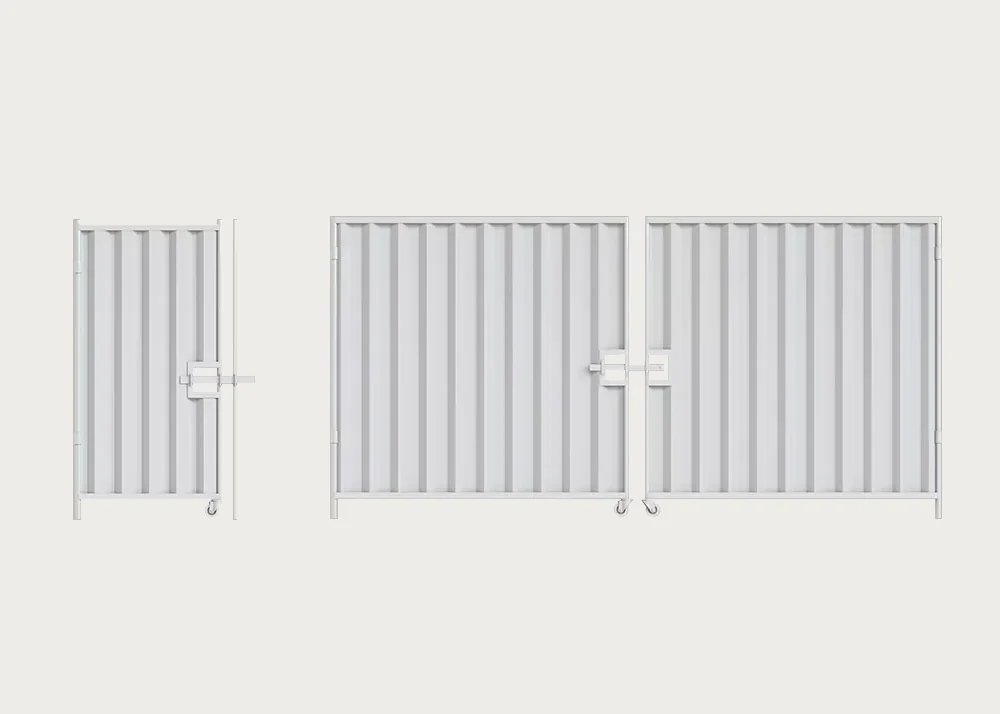

Hoarding Gates to Match
We offer a range of pedestrian and vehicle gates customized to suit your site’s needs. Regardless of whether you choose 2m or 2.4m hoarding, our gates are designed to fit with these temporary hoarding panels. Our pedestrian gates are offered in both framed and unframed variants, while our vehicle gates come in widths ranging from 4m to 7m.
