In-Ground Hoarding
THS111600
In construction projects lasting for prolonged periods or in locations demanding heightened security measures, in-ground steel hoarding is often the preferred choice
Product ID: THS111600
In-Ground Hoarding

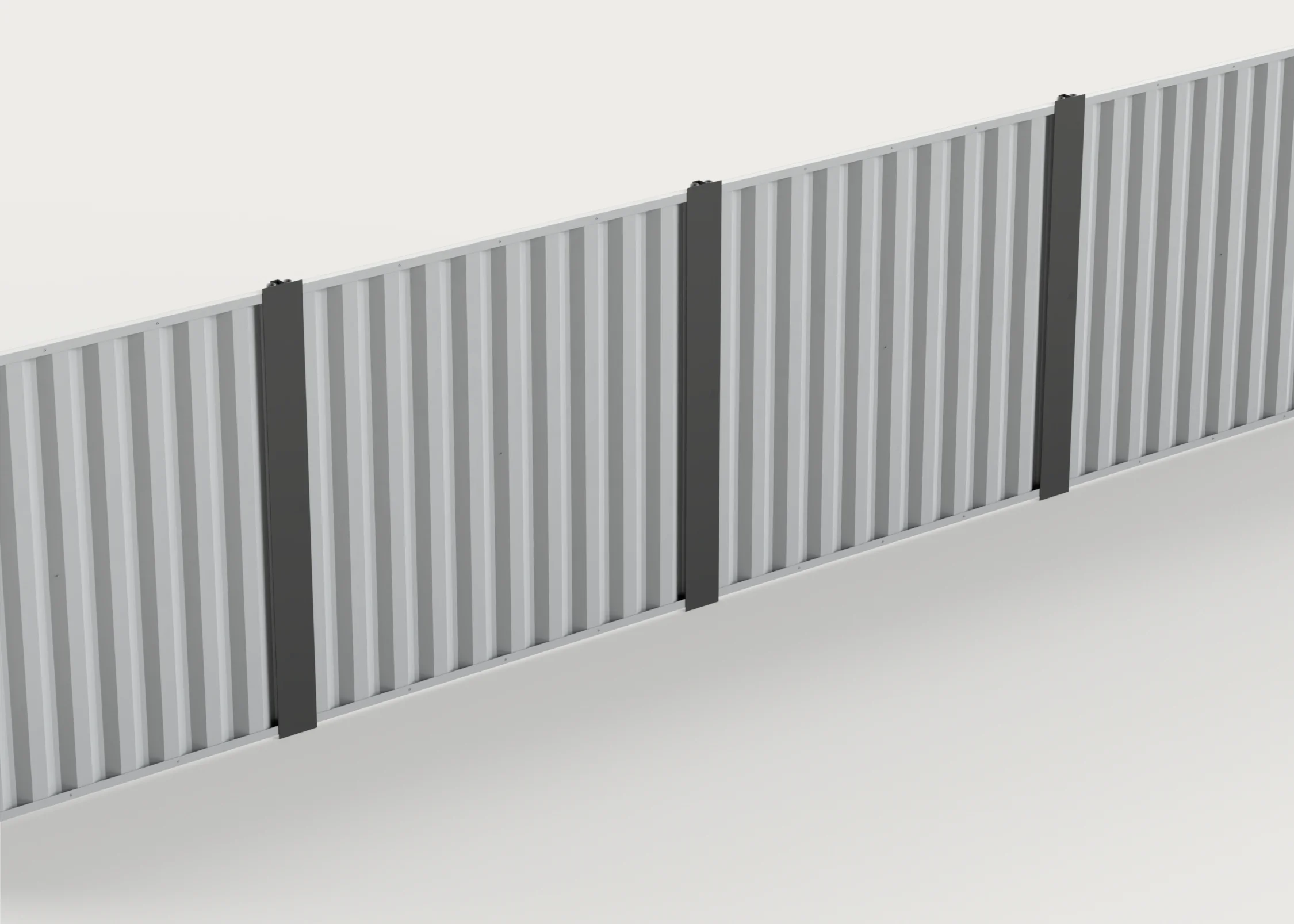

The in-ground hoarding system entails embedding a portion of the steel posts into the ground to enhance stability and security. This buried segment serves as an anchor, deterring unauthorised access or intrusion attempts. Widely considered a sturdy site perimeter solution, it’s particularly suitable for long-term construction projects.
Key Features
Privacy Screen
Solid hoarding panels ensure visual privacy, dust control, and safer public separation zones.
Secure Access
Integrated pedestrian and vehicle gates provide controlled entry without compromising site security.
Heavy Duty
Engineered from reinforced steel for lasting performance under demanding site and highway conditions.
2m InOn Ground Steel Hoarding Panel
| Product ID | THS111050 |
|---|---|
| Height | 2000mm |
| Depth | 40mm |
| Width | 2133mm |
| Weight | 30kg |
| Colours | Unpainted |
2.4m InOn Ground Steel Hoarding Panel
| Product ID | THS111100 |
|---|---|
| Height | 2400mm |
| Depth | 40mm |
| Width | 2133mm |
| Weight | 35kg |
| Colours | Unpainted |
2m In Ground Post
| Product ID | THS111600 |
|---|---|
| Height | 2000mm (2600mm Overall) |
| Depth | 60mm |
| Width | 190mm |
| Weight | 20kg |
| Colours | Unpainted |

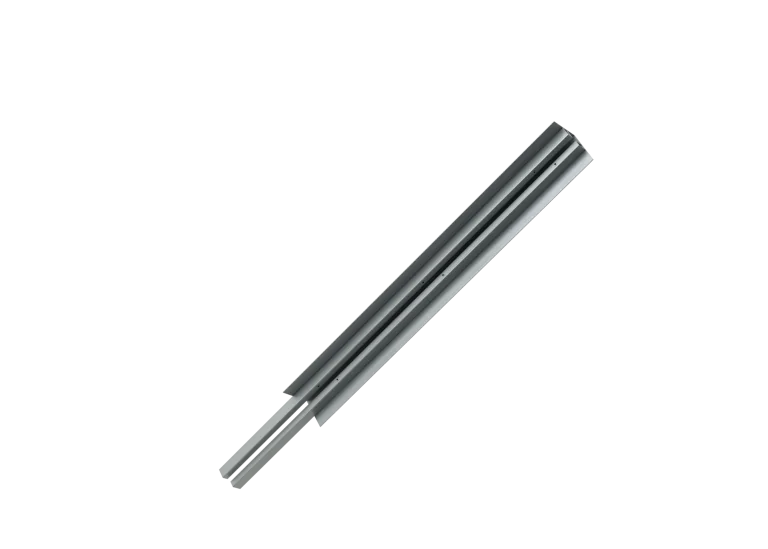

2m In Ground Corner Post
| Product ID | THS111610 |
|---|---|
| Height | 2000mm (2600mm Overall) |
| Depth | 190mm |
| Width | 190mm |
| Weight | 40kg |
| Colours | Unpainted |

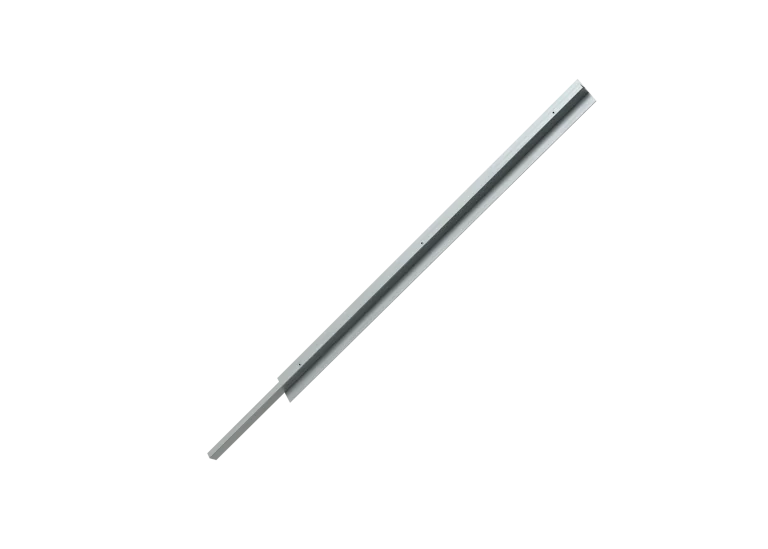

2m In Ground Post
| Product ID | THS111650 |
|---|---|
| Height | 2400mm (3000mm Overall) |
| Depth | 60mm |
| Width | 190mm |
| Weight | 24kg |
| Colours | Unpainted |

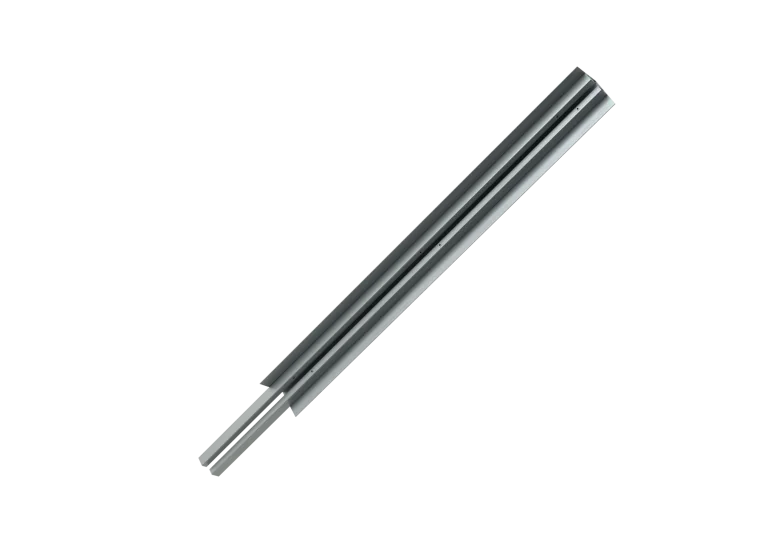

2.4m In Ground Corner Post
| Product ID | THS111660 |
|---|---|
| Height | 2400mm (3000mm Overall) |
| Depth | 190mm |
| Width | 190mm |
| Weight | 47kg |
| Colours | Unpainted |

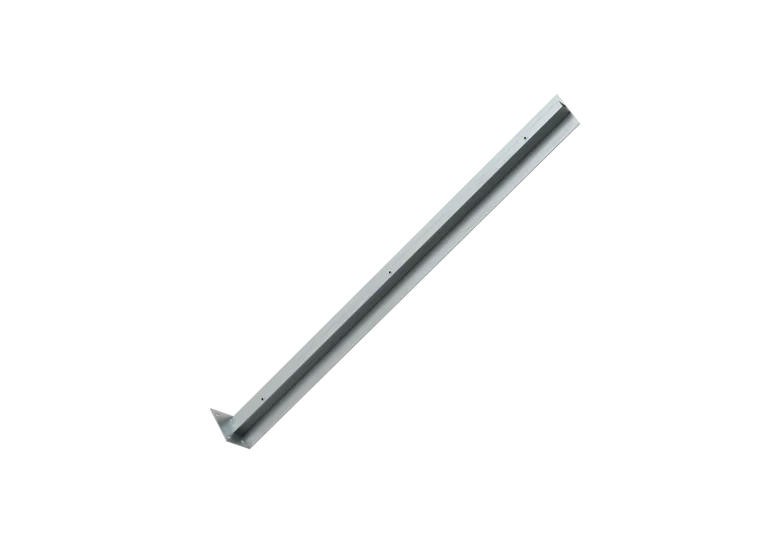

2m Bolt Down Post
| Product ID | THS111500 |
|---|---|
| Height | 2000mm |
| Depth | 150mm |
| Width | 190mm |
| Weight | 20kg |
| Colours | Unpainted |

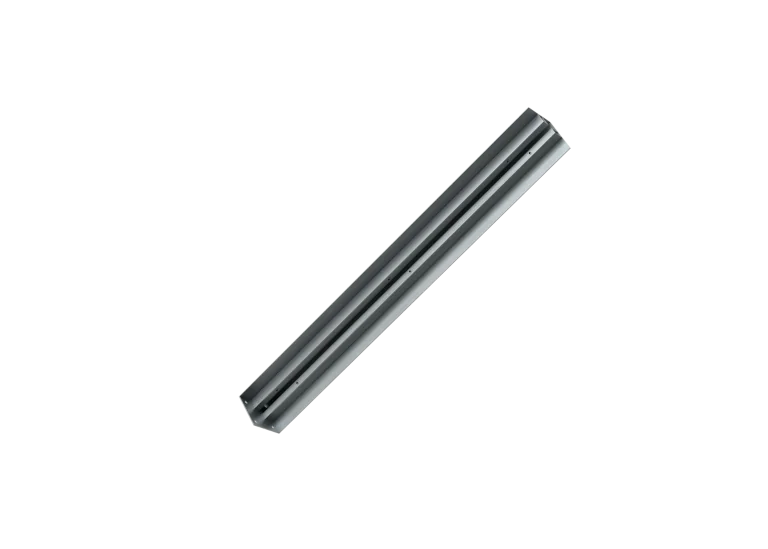

2m Bolt Down Corner Post
| Product ID | THS111510 |
|---|---|
| Height | 2000mm |
| Depth | 190mm |
| Width | 190mm |
| Weight | 40kg |
| Colours | Unpainted |

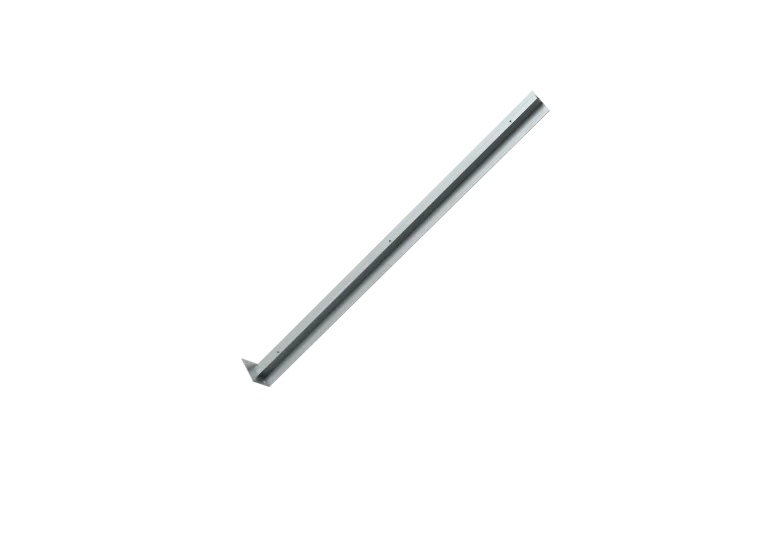

2m Bolt Down Post
| Product ID | THS111550 |
|---|---|
| Height | 2400mm |
| Depth | 150mm |
| Width | 190mm |
| Weight | 22kg |
| Colours | Unpainted |

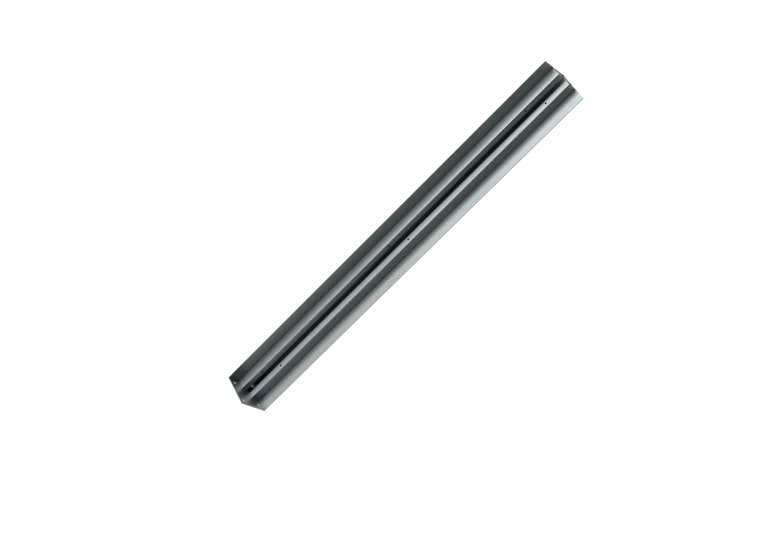

2.4m Bolt Down Corner Post
| Product ID | THS111560 |
|---|---|
| Height | 2400mm |
| Depth | 190mm |
| Width | 190mm |
| Weight | 43kg |
| Colours | Unpainted |

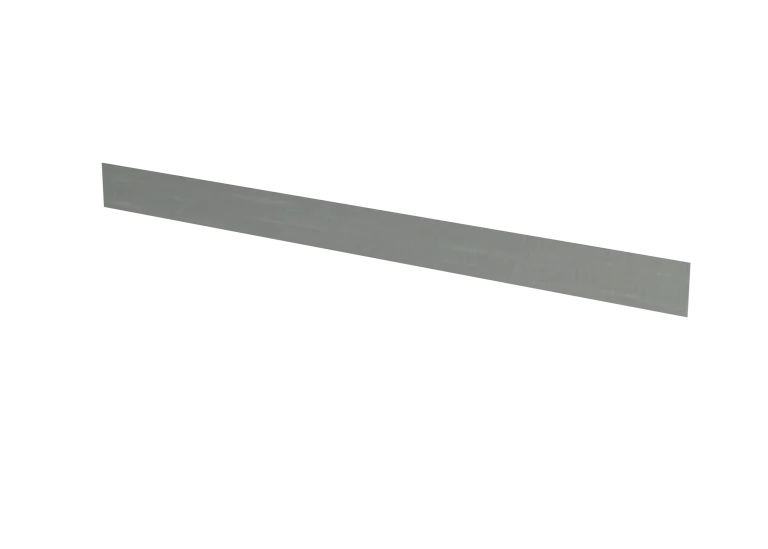

Hoarding Trim
| Product ID | THS112050 |
|---|---|
| Height | 150mm |
| Depth | 1mm |
| Width | 2100mm |
| Weight | 2kg |
| Colours | Unpainted |

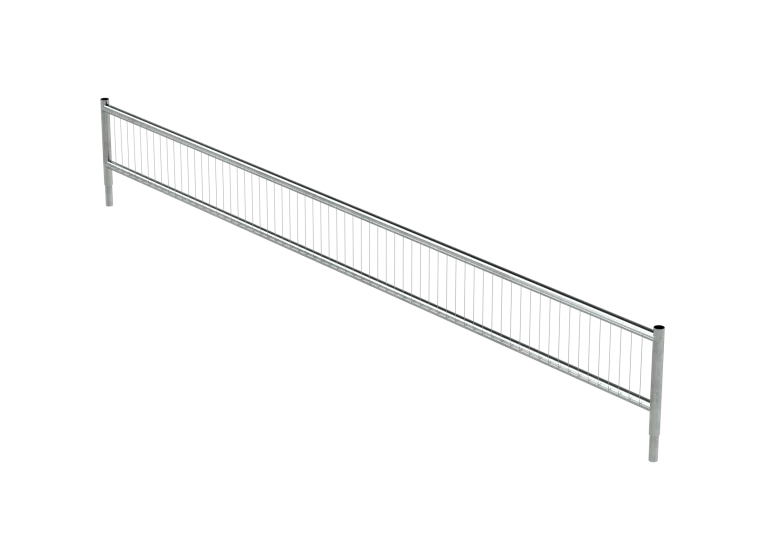

Hoarding Mesh Extention
| Product ID | THS112100 |
|---|---|
| Height | 500mm (725mm Overall) |
| Depth | 40mm |
| Width | 2140mm |
| Weight | 7kg |
| Colours | Unpainted |

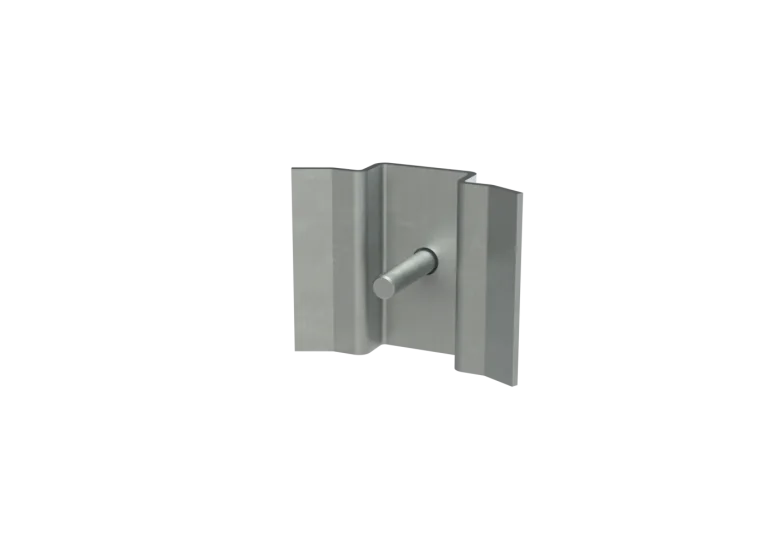

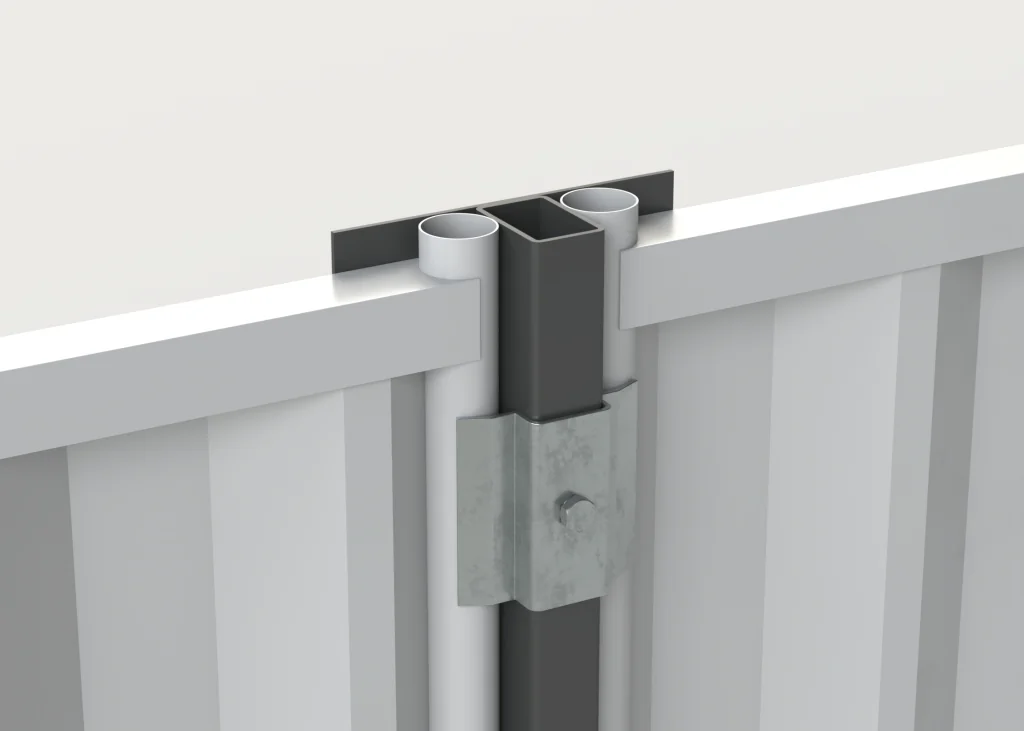

Profiled Clip
| Product ID | THS111750 |
|---|---|
| Height | 80mm |
| Depth | 30mm |
| Width | 100mm |
| Weight | 1kg |
| Colours | Unpainted |
4x2m Hoarding Vehicle Gate
| Product ID | THS112400 |
|---|---|
| Height | 2000mm |
| Depth | 40mm |
| Width | 4000mm |
| Weight | 60kg |
| Colours | Unpainted |
4×2.4m Hoarding Vehicle Gate
| Product ID | THS112420 |
|---|---|
| Height | 2400mm |
| Depth | 40mm |
| Width | 4000mm |
| Weight | 71kg |
| Colours | Unpainted |
2m Hoarding Pedestrian Gate
| Product ID | THS112300 |
|---|---|
| Height | 2000mm |
| Depth | 40mm |
| Width | 1000mm |
| Weight | 17kg |
| Colours | Unpainted |
2.4m Hoarding Pedestrian Gate
| Product ID | THS112340 |
|---|---|
| Height | 2400mm |
| Depth | 40mm |
| Width | 1000mm |
| Weight | 20kg |
| Colours | Unpainted |
Download Spec Sheet

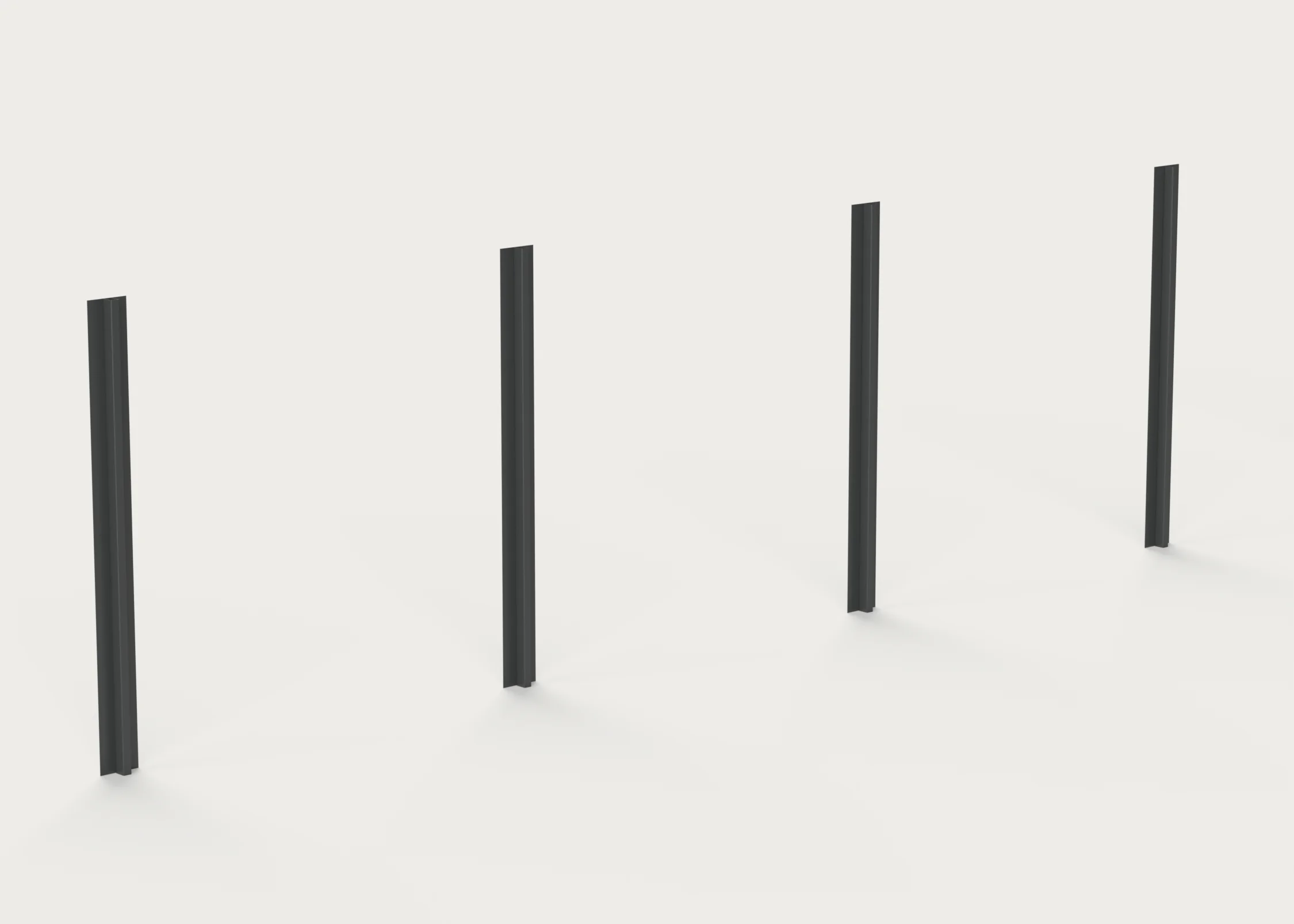

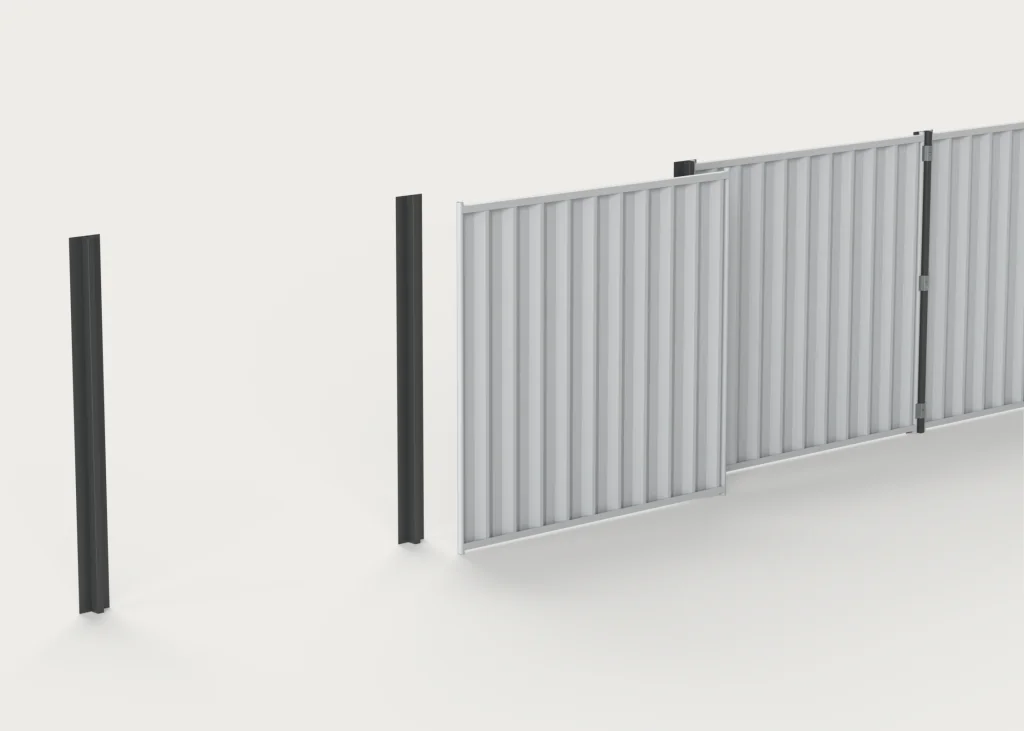

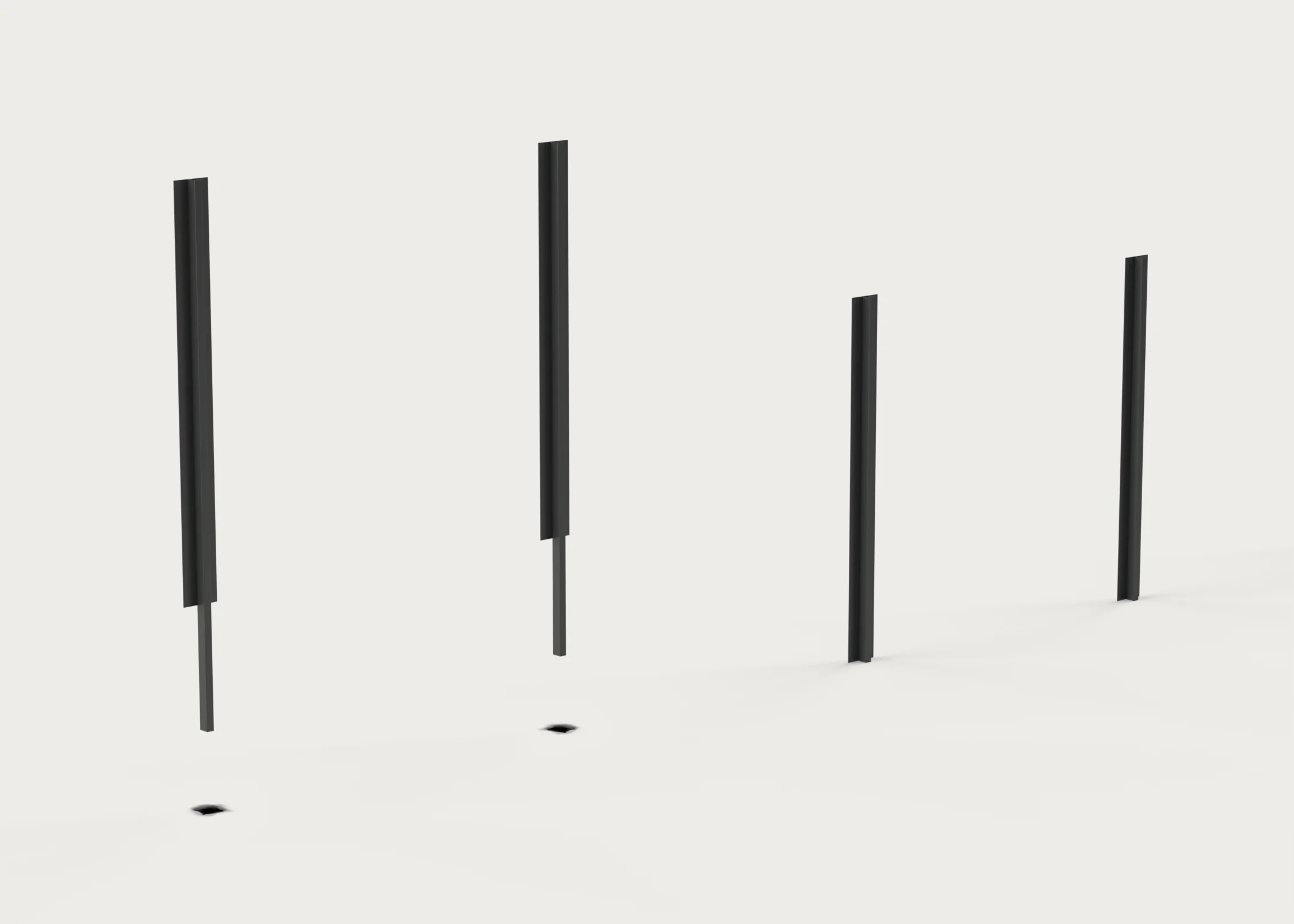

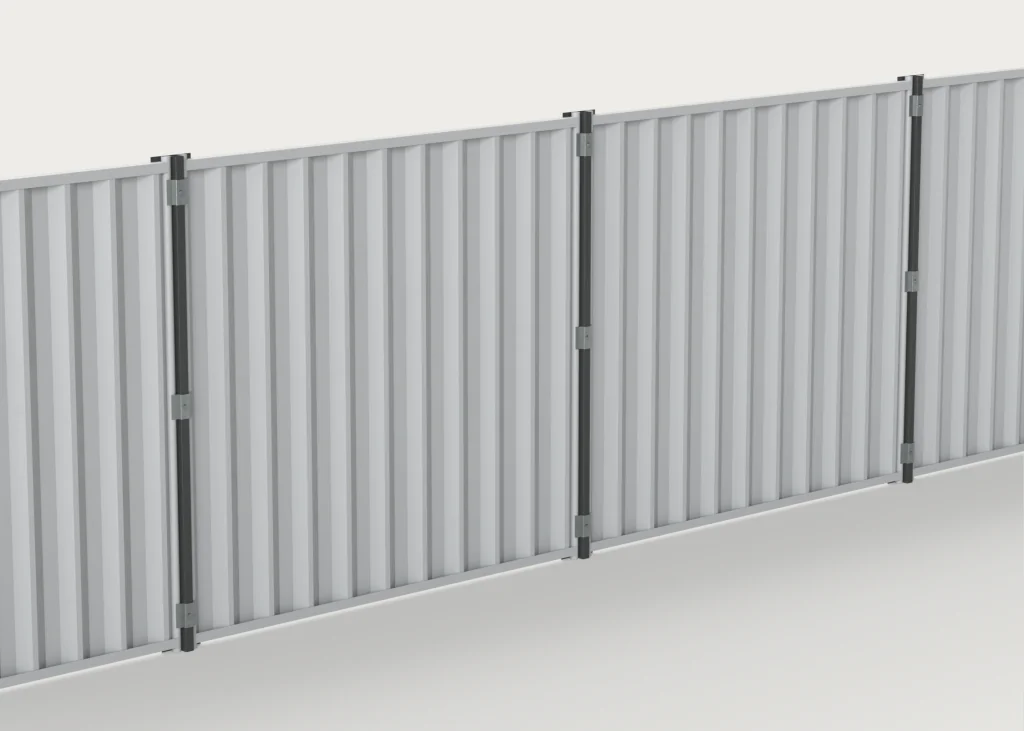

In Ground Installation
This hoarding is installed directly into the ground, creating a seamless connection with the floor below, unlike temporary mesh or hoarding panels that are elevated above the ground on feet.
Hoarding Gates to Match
We offer a range of pedestrian and vehicle gates customized to suit your site’s needs. Regardless of whether you choose 2m or 2.4m hoarding, our gates are designed to fit with these temporary hoarding panels. Our pedestrian gates are offered in both framed and unframed variants, while our vehicle gates come in widths ranging from 4m to 7m.
