Manta Barrier

Product ID: MTS20000000

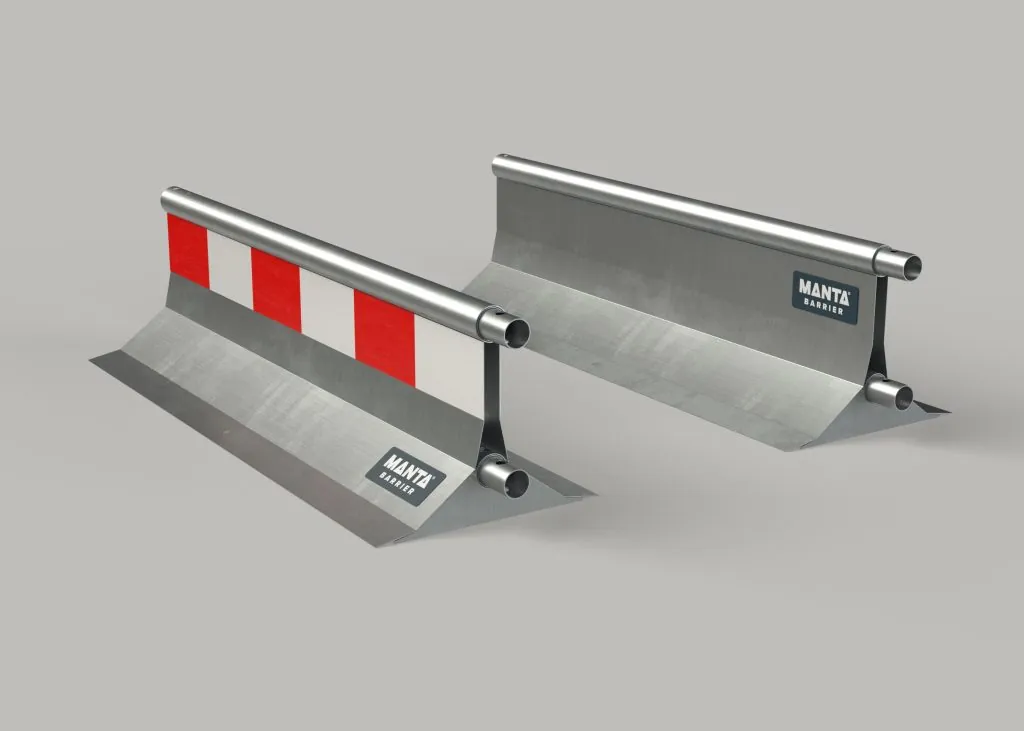

Manta Barrier

The Manta barriers utilise durable, recyclable galvanised steel, coated with powder for enhanced visibility and resilience against various weather conditions. With the ability to connect seamlessly to one another using a removable steel pin, each unit contributes to forming a continuous barrier system.

  • Crash tested to T2 W7 levels without reinforcement
  • Quick and easy to assemble, install and reposition
  • ‘Class A’ Wind Tunnel Test Certification
  • Connected units form a continuous barrier
  • Stackable for easy transportation and storage
  • Full range of accessories

Barriers:

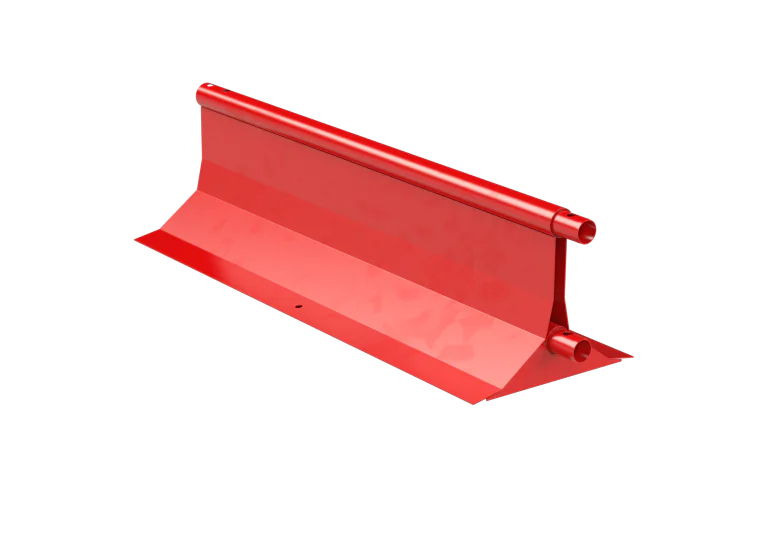

MTS200000 Manta Barrier 1.5m Base Unit – Red – H500mm x W1500mm x D420mm – 48kg

MTS200010 Manta Barrier 1.5m Base Unit – White – H500mm x W1500mm x D420mm – 48kg

Corner Barriers:

MTS200100 Manta Barrier Corner – Male – Red – H420mm x W1567mm x D500mm – 43kg

MTS200125 Manta Barrier Corner – Female – White – H420mm x W1582mm x D500mm – 43kg

End Units:

MTS200180 Manta End Section Male – Red – H500mm x W660mm x D000mm – 17kg

MTS200190 Manta End Section Female – White – H500mm x W580mm x D490mm – 19kg

Fences:

MTS200400 Manta 3m x 2m Mesh Fence – H1580mm x W2968mm x D38mm – 15kg

MTS200450 Manta 1.5m Pedestrian Fence – H580mm x W1463mm x D38mm – 6kg

MTS200500 Manta 1.5m Hi-Vis Mesh Fence (Chapter 8) – H580mm x W1463mm x D38mm – 6kg

Connecting Posts & Pins:

MTS200300 Manta Connection Pin – H383mm x W140mm x D74mm – 1.22kg

MTS200310 Manta Single Pin – H370mm x W50mm x D50mm – 1kg

MTS200250 Manta Gate Adaption Post – H1950mm x W50mm x D50mm – 2kg

MTS200255 Manta Gate Adaption Post – Short – H945mm x W50mm x D50mm – 1kg

Are there fencing options with the Manta Barrier?

Yes, we manufacture 3 different variations of mesh fencing, our standard 0.5m high and chapter 8 hi-vis options for pedestrian fencing, and our 3m high mesh fencing.

Can hoarding be used with the Manta barrier?

Yes, we manufacture hoarding panels that are 3m high in both white and red hi-vis colour options.

Are gates compatible with the Manta Barrier?

Yes, we currently have the standard pedestrian and vehicle gates that are compatible with the 3m mesh fencing. We these gates in a hoarding option too.

Quick install

The Manta Barrier offers quick and flexible installation, complemented by a range of accessories such as 1m pedestrian fences, 2m hoarding fences, corners, end stops, and gates. Each accessory is designed for easy installation, requiring no specialist equipment.

Crash Tested

The Manta barrier has been crash-tested to BS EN 1317:2010 standards, receiving a result of 0.2 and THIV 13 test. This outcome corresponds to an A rating for severity, representing the lowest and most favourable result achievable.

Notably, it achieved this rating without the need for a reinforcement bar, unlike other alternative road barriers. This means it is simpler to set up while maintaining its resistance.

Rigorously Wind Tested

The Manta Barrier has been meticulously tested within an internationally renowned wind tunnel testing facility, during which the barrier system achieved two classification A passes and one classification B pass.

Three arrangements of the Manta barrier system have been tested, these include two adjoined Manta barriers without any add-ons, two adjoined Manta barriers with the lightweight 576mm pedestrian fence add-on, and two adjoined Manta barriers with the 1538mm anti-climb mesh fence add-on. Each arrangement of the system achieved a high level of wind resistance.

74

mph

Classification A

Speed Limit Reached: 120km/h (33.3m/s)

60

mph

Classification A

Speed Limit Reached: 97km/h (26.9m/s)

44

mph

Classification B

Speed Limit Reached: 72km/h (20.0m/s)
